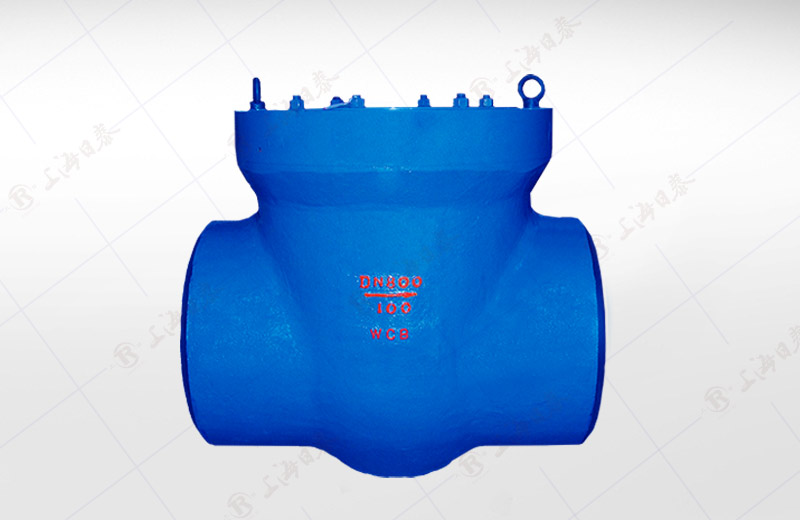

Block valve

Product details

1. The valve adopts butt welding connection, straight path without shrinkage, single plane sealing, austenitic stainless steel on the sealing surface of the valve body, and O-type rubber sealing ring on the sealing plate.

2, the cavity adopts the pressure self-tight sealing structure, during hydraulic test or operation, can use the medium pressure to compress the sealing ring to achieve reliable sealing, and the higher the pressure, the more reliable the sealing.
3. The valve body adopts high-quality steel castings, both ends of which are processed into U-shaped groove and directly butt welding with pipes. The chemical composition and properties of the two materials are similar, and the welding performance is excellent, without welding the intermediate itD;The four-open ring adopts 38CrMoAlA to resist nitriding, ensure its thermal strength, wear resistance, corrosion resistance, scratch prevention, easy to disassemble and assemble;Middle cavity self-sealing washer, high temperature steam corrugated asbestos washer, internal braid 18-8 filament to ensure sealing and prolong service life;Surface welding 1Cr18Ni9Ti, anti-rust, anti-erosion, multiple tests can ensure the seal.


Product model: SD61Y-P55
Nominal diameter: DN200~1000mm
Nominal pressure: PN1.0~32.0MPa
Applicable temperature: 300~575℃
Suitable medium: water, steam
Main materials: WCB, WC9, ZG15Cr1MoV
Design standard: GB/T 12236, API 6D, BS 1868
Structure length: GB/T 12221, ASME Bl6.10
Connecting flange: JB/T79, GB/T9113, HG20594, ASME Bl6.5
Butt welding end: GB/T 12224, ASME Bl6.25
Test and inspection: GB/T 13927, JB/T 9092, API 598, API 6D, BS67
