Your location is: ProductsButterfly valveEccentric Hard Seat Butterfly Valve

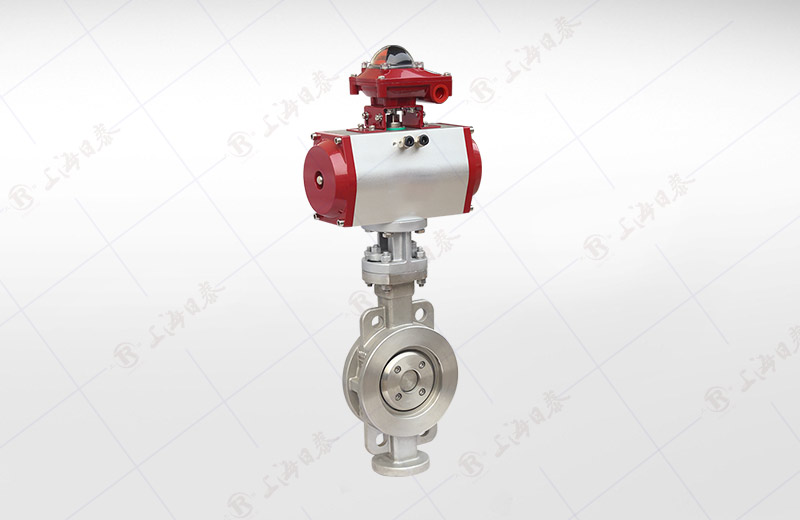

Eccentric Hard Seat Butterfly Valve

Product details

1. the valve adopts three eccentric sealing structure, the seat and butterfly plate almost no wear, with tighter sealing function.

2. the valve body is made of stainless steel, with the double advantages of metal hard seal and elastic seal, no matter at low temperature and high temperature, has excellent sealing performance, corrosion resistance, long service life and other characteristics.
3. The sealing surface of butterfly plate is surfacing with cobalt-based hard alloy, which is resistant to wear and has a long service life.
4. The large-size butterfly plate adopts the structure of quilting, with high strength, large flow area and small flow resistance.
5. the valve has a two-way sealing function, installation is not limited by the flow direction of media, not affected by the space position, can be installed in any direction.
6. The driving device can be installed in multiple stations (rotating 90° or 180°) for the convenience of users.


Product model: D673H/Y
Nominal diameter: DN40~2000mm
Nominal pressure: PN0.6~ 4.0MPa
Applicable temperature: -29~425℃
Applicable medium: water, steam, oil, etc
Body material: carbon steel, stainless steel
Seat material: stainless steel, Stellite alloy, tungsten carbide, nickel alloy, Monel
Valve plate: carbon steel, stainless steel, alloy steel
Connection: in - between
Driving mode: worm wheel drive, electric, pneumatic, hydraulic
